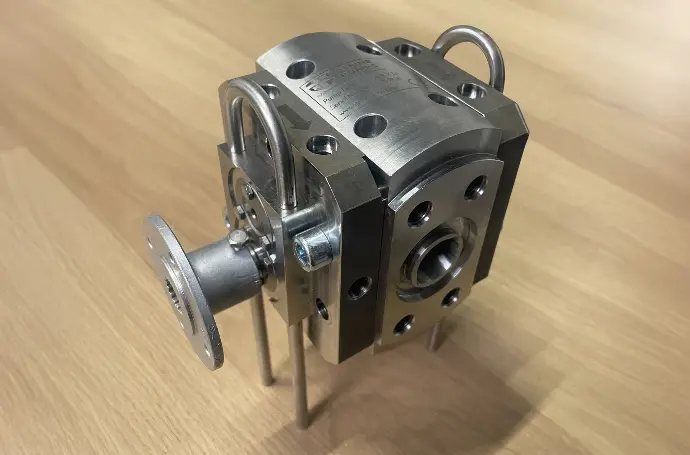

ALP-X

The ALP-X pump is designed and built for extrusion processes. It is used for increased control and performance in polymer processing. The ALP-X comes in standard  and customized executions, making it possible for the most demaning processes.

Adding a gear pump to an extrusion process has the following main benefits:

  • Very stable output flow
  • Very stable outlet pressure
  • Reduced extruder wear (main pressure built op by the pump)
  • Increased pressure (up to 700 bar)

Standard or Custom

Material use is important, especially in harsh operating conditions. Wetted materials are amongst others:

Capacity ​ ​ ​: <1 kg/hr up to 10.000 kg/hr
Differential Pressure ​: max. 250 bar - standard
​ ​ ​ ​  up to 700 bar - custom
Temperature ​ ​: up to 400 ˚C
Viscosity ​ ​ ​: up to 20.000 Pas

Polymers ​ ​ ​: PS, PET, PVC, PC, ​ ​ ​ ​ ​ ​  PA, HDPE, LDPE, LLDPE, ​ ​ ​ ​  PP, PEEK
Additives + Fillers ​: Flame retardents (bromide)
​ ​ ​ ​  Glass, Carbon Blacks, ​ ​ ​ ​ ​  Colorants, ...



Shaft Sealing + Materials

Many different Shaft Sealing types are available for the ALP-C gear pumps. Each with their own specific advantages.

  • Singel Mechanical Seal
  • Double Mechanical Seal
  • Vacuum Seal
  • Stuffing Box
  • Magnetic Coupling

Materials

ALP-C pump are availabe in different sizes to meet the required trough put.

  • 1.3-22-6
  • 2.8-22-13
  • 4.6-22-22
  • 10-28-28
  • 25-36-36
  • 46-45-45
  • 93-56-56
  • 180-70-70
